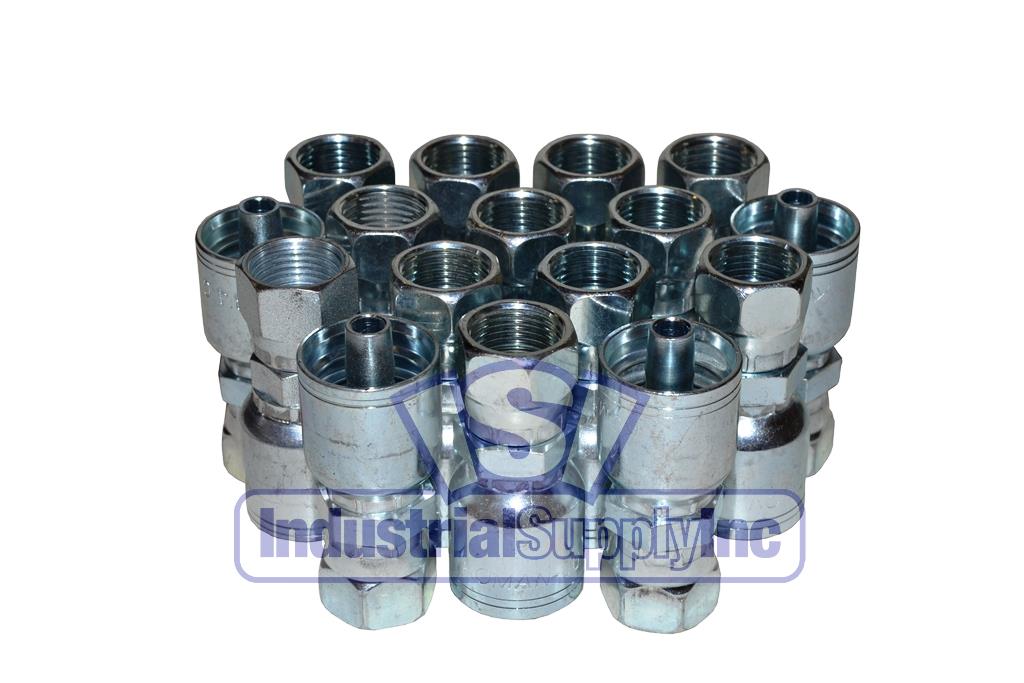

| Hydraulic Crimp Fitting | 1/2" Female JIC x 1/2" Hose Barb | C202-8-8 | 16 Pack | Industrial Supply

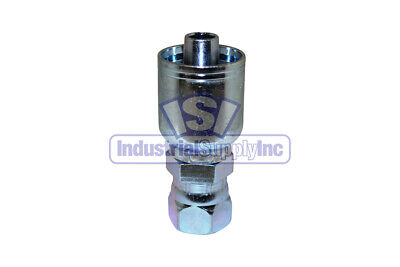

Our 1/2" female JIC x 1/2" hose barb hydraulic crimp fitting is plated steel. These fittings are compatible with Parker Karrycrimp, Gates, Dayco, and Aeroquip adjustable machines, they are not compatible with Weatherhead non-adjustable crimpers. Interchange equivalent to Parker 10643-8-8. These fittings are a "Bite to Wire" hydraulic crimp fitting. Our crimp fittings will fit most 1 and 2 wire hydraulic hose including but not limited to hoses listed below. - Semperit- 1SN, 2SN - Aeroquip- FC211, FC212 - Weatherhead- H425 - Parker- 301, 302, 381, 421, 471TC, 451TC, 601 - Gates- G2, G1, M2K, M3K * Will also fit hoses that meet 100R1AT, 100R2AT, 100R16, 100R17 Our Part
# | Parker Part # | Tube O.D. | Hose I.D. | End Configuration | 2-Wire Crimp O.D.Measurement | | C202-4-4 | 10643-4-4 | 7/16" - 20 UNF | 1/4" | FJ Straight | 0.705 | | C202-6-4 | 10643-6-4 | 9/16" - 18 UNF | 3/8" | FJ Straight | 0.865 | | C202-6-6 | 10643-6-6 | 9/16" - 18 UNF | 3/8" | FJ Straight | 0.865 | | C202-8-6 | 10643-8-6 | 3/4" - 16 UNF | 3/8" | FJ Straight | 0.995 | | C202-8-8 | 10643-8-8 | 3/4" - 16 UNF | 1/2" | FJ Straight | 0.995 | | C202-10-8 | 10643-10-8 | 7/8" - 14 UNF | 5/8" | FJ Straight | 1.110 | | C202-10-10 | 10643-10-10 | 7/8" - 14 UNF | 5/8" | FJ Straight | 1.110 | | C202-12-12 | 10643-12-12 | 1-1/16" - 14 UNF | 3/4" | FJ Straight | 1.295 | | C202-16-16 | 10643-16-16 | 1-3/8" - 12 UNF | 1" | FJ Straight | 1.640 |
All orders will be shipped in USPS Priority Mail Flat Box. We do combine ship whenever possible. Please see our store for the best prices on hydraulic hose. Any questions please send us a message through eBay and we'll respond back as soon as possible with an answer. Many items can be combined shipped. Please follow the guidelines in the instructions in our F.A.Q. below.
FAQ's
Q. I plan on buying multiple items from your store, can I combine shipping to save cost? A. Whenever possible many items can be combined shipped. Due to weight restrictions with USPS, and size not all items can be combined. For instance, smaller items can easily be combined in the same box. Send us a message through eBay or give us a call to let us know that you would like your shipping to be combined. We will than combine the shipping, and send you the invoice with the adjusted price. Then you will be able to finalize your payment in PayPal. If finalize your payment in PayPal before you ask for combined shipping you will be subjected to fees. Q. Do we ship internationally? A. Yes we do ship worldwide to about every country. Just make sure you input the right information into the right fields when ordering. USPS international shipping will include a handling fee, which is determined by location. Q. How long does USPS international take to be delivered? A. International Priority mail usually takes 6-10 business days, upon receiving tracking number. First class mail depends on the destination of the package. Q. What are cut-off times for getting an order out same day? A. If you need an order to be shipped out same day, please send us a message before you place your order. USPS orders must be placed before 11:00 A.M. PST if you want same day shipping (excluding some hose assemblies). UPS orders must be placed before 12:00 P.M. PST if you want same day shipping (excluding some hose assemblies). Q. How long will USPS shipping take (US)? A. Depending on what you ordered, but in most cases 2-3 days shipping since we ship flat rate priority mail. If you order required first class mail service, in most cases 5-7 days. Q. How long does it take to process orders? A. It usually takes 1-2 business days to process most orders. Custom hose assemblies take about an extra business day to process.
Key Term's
Abbreviation | System Name | BSPP | British Standard Pipe Parallel | BSPTr | British Standard Pipe Taper | CHT | American Standard Fire Hose Thread (1” National Hose Thread is Chemical Hose Thread) | GHT | Garden Hose Thread | IPS | Iron Pipe Straight Thread | IPT | Iron Pipe Thread | JIC | Joint Industrial Committee | NH Or NST | American Standard Fire Hose Coupling Thread (National Hose thread also known as National Standard Thread) | NPT | American Standard Taper Pipe Thread (National Pipe Tapered) | NPTF | American Standard taper Pipe Duel Dryseal Thread (National Pipe Tapered) (Dryseal) | NPSH | American Standard Straight Pipe for Hose Couplings (National Pipe Straight Hose) | NPSM | American Standard Straight Mechanical Joints (National Pipe Straight Mechanical) | SIPT | Straight Iron Pipe Thread | TIPT | Tapered Iron Pipe Thread | NYC | NYC Fire Department | Chicago | Chicago Fire Department |
