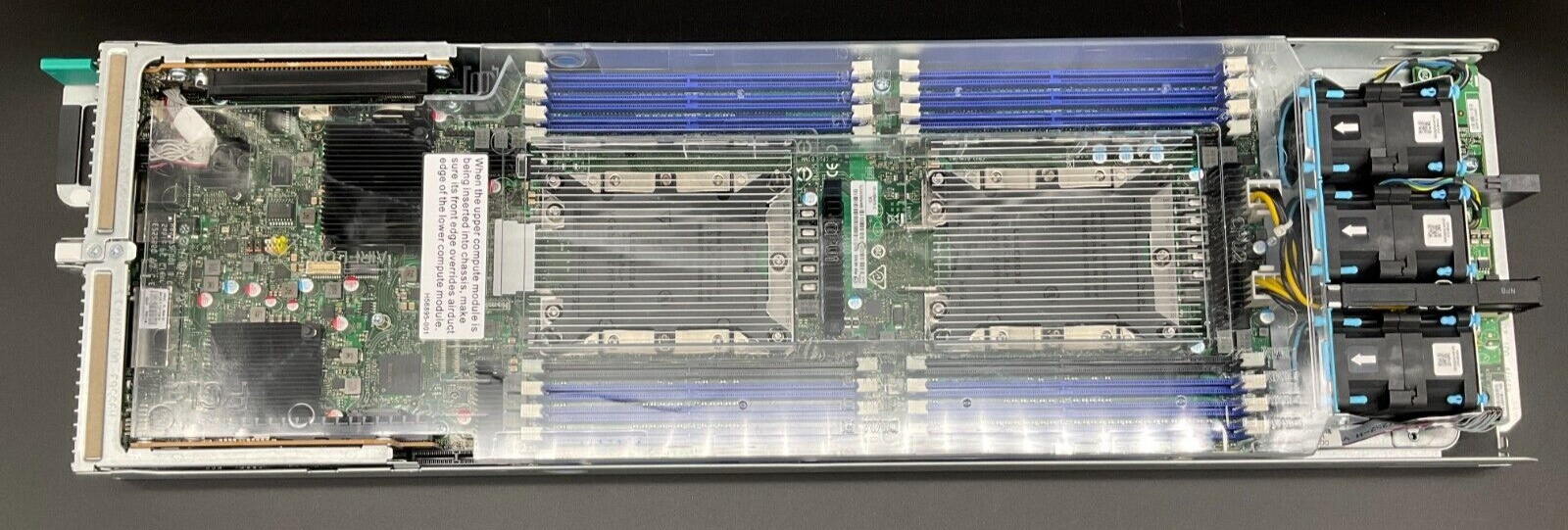

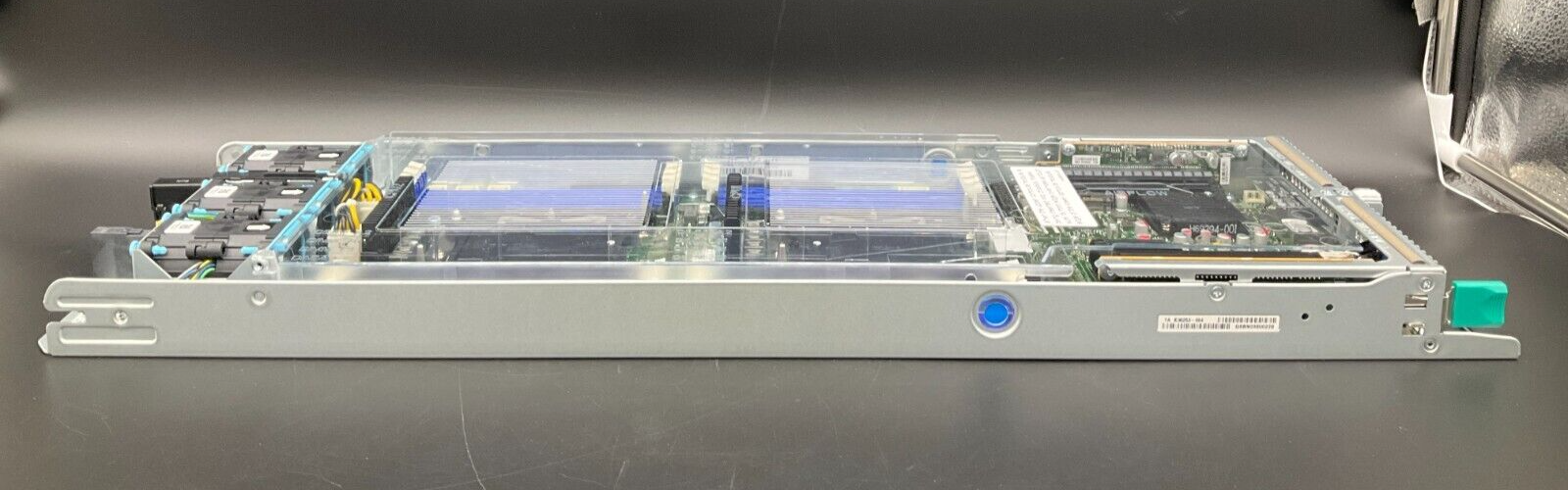

Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel

Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #2
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #3
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #4
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #5
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #6
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #7
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #8
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #9
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #10
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #11
Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW* Intel - фотография #12
Бренд: Intel
~ 77 006 ₽ 829.99 $

Характеристики

Type Server

The unit is brand new. The outer box was briefly removed during the inspection process and for photos. Unit and original accessories are still factory-sealed! Never been deployed! Images are of what you will receive. The retail box has wear from warehouse storage and removal of distribution labels. 30-day return policy so that you can buy with confidence!


Intel Compute Module HNS2600BPBR Server blade 2-way no CPU no RAM no HDD *NEW*


Design: Rack-mountable

Number of Rack Units: 2U

RAID Level: RAID 0, RAID 1, RAID 1+0, RAID 5, RAID 5+0

Type: Server

Product Form Factor: Blade

Embedded Security: Trusted Platform Module (TPM 2.0) Security Chip

Server Scalability: 2-way

Processor / Chipset CPU: No CPU

Max CPU Qty: 2

CPU Upgradability: Upgradable

CPU Socket: Socket P

Chipset Type: Intel C621


RAM


Installed Size: 0 GB

Technology: DDR4 SDRAM - ECC

Form Factor: DIMM 288-pin

Slots: 16 (total) / 16 (empty)

Features: Registered, Load-Reduced DIMM (LRDIMM)

Hard Drive: No HDD

Storage Controller Type: SATA

Controller Interface Type: SATA 6Gb/s

Channel Qty: 8

RAID Level: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50

Optical Storage Type: No optical drive


Graphics Controller


Video Memory: 16 MB DDR4 SDRAM

Video Interfaces: VGA


Networking


Ethernet Ports: 2 x 10 Gigabit Ethernet

Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Remote Management Protocol: IPMI 2.0

Remote Management Controller: Intel Baseboard Management Controller (BMC)


Expansion / Connectivity


Slots: 1 (total) / 1 (free) x PCIe 3.0 x16 (low-profile) 1 (total) / 1 (free) x M.2 Card - 2242

Interfaces: 1 x VGA 2 x USB 3.0 2 x LAN (10Gigabit Ethernet) - RJ-45 1 x serial 1 x management - RJ-45


Miscellaneous


Included Accessories: 2 x CPU Heatsink, air duct, riser card, node power board, 1U node tray, 3 x system fans, M.2 to PCI adapter, external VGA port bracket, Intel Server Board S2600BPBR


Manufacturer Warranty


Service & Support Limited warranty: 3 years


Dimensions & Weight


Width: 7 in

Depth: 24.7 in

Height: 1.6 in

Weight: 9.52 lbs
