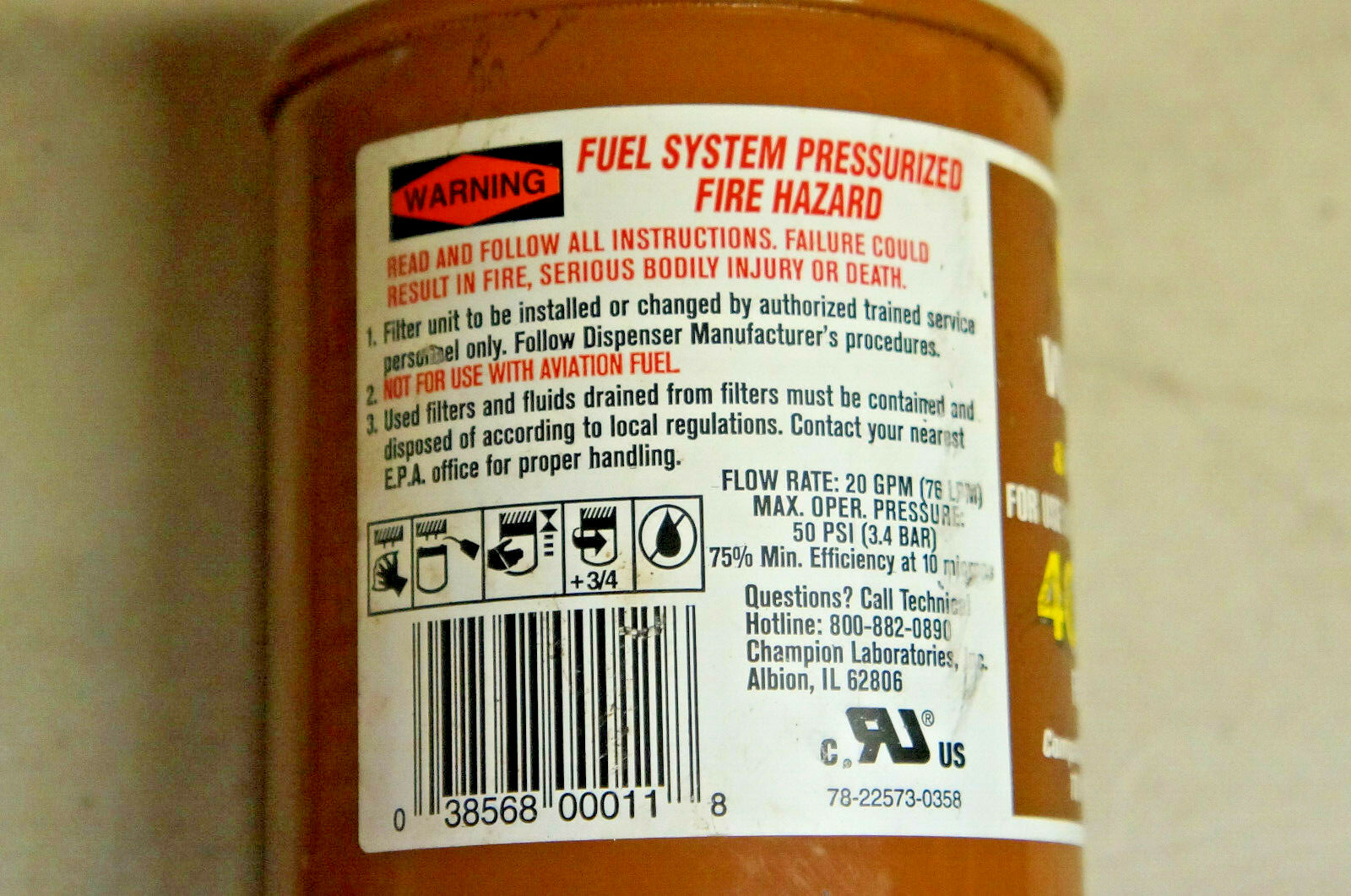

Lot of 3: PETRO CLEAR 40930W-AD Fuel Filter Water Sensing Particulate Removing Petroclear 40930W-AD
Бренд: Petroclear
~ 8 018 ₽
99.00 $
Характеристики
Country/Region of Manufacture
United States
Lot of 3:PETRO CLEAR 40930W-AD Fuel Filter Water Sensing & Particulate Removing (Extended-Life).
Brand new (NOS), still in original wrapping. Some "shelf wear" (wrappers loose).
Fast FREE Shipping!!!
Interchange with part Numbers: 260HS30, 40930W, 600174, 70067, 96546, BF9913, CT70067, F1810HMO, FS19748, WF10174
Benefits
- The 40910W-AD and 40930W-AD are designed to remove particulate and to sense both free and emulsified water from neat gasoline, diesel, Biodiesel, ULSD (Ultra Low Sulfur Diesel), Kerosene, fuel oils. This filter will not react to water in gasoline or diesel fuel nor to phase separation in alcohol blended gasolines by slowing flow.
- PetroClear® models 40910W-AD and 40930W-AD are particulate and water sensing spin-on filters. These filters are designed to sense water, both free and emulsified, and slow flow as an indicator of the presence of water in neat gasoline and Diesel fuels.
- PetroClear® model 40910W-AD filter offers efficient 10 micron (nominal) particulate removal and senses both free and emulsified water from neat gasoline or diesel fuel.
- PetroClear® model 40930W-AD filter offers efficient 30 micron (nominal) particulate removal and senses both free and emulsified water in neat gasoline and diesel fuels.
- Textured paint coating helps ensure a simple, mess-free installation and removal process.
- UL® recognized
- Will not detect phase separation in Kerosene and Ethanol blended fuels.
- The PetroClear® model 40910W-AD utilizes a 10 micron (nominal) cellulose media to remove particulate from gasoline and diesel fuels including Biodiesel and ULSD (Ultra Low Sulfur Diesel). Removes particulate 10 microns (nominal) or larger, with water sensing capability in neat gasoline and diesel fuel.
- The PetroClear® model 40930W-AD utilizes a 30 micron (nominal) cellulose media to remove particulate from gasoline and diesel fuels including Biodiesel and ULSD (Ultra Low Sulfur Diesel). Removes particulate 30 microns (nominal) or larger, with water sensing capability in neat gasoline and diesel fuel.
- Once PetroClear® models 40910W-AD and 40930W-AD have absorbed 10.7 ounces (315 mil) of water from neat gasoline or diesel fuel, flow will be noticeably slow.
- The maximum flow rate for PetroClear® models 40910W-AD and 40930W-AD is 25 gpm (94.6 lpm). Maximum operating pressure is 50 psid (3.4 bar). Collapse pressure is 150 psid (10.3 bar). Maximum operating temperature is 250°F (139°C).
- PetroClear® models 40910W-AD and 40930W-AD utilize a standard 1.5" – 16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in aftermarket and/or high-flow applications such as in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers.
- Adapters are available for models 40910W-AD and 40930W-AD in aluminum. These single adapters are available in 3/4" and 1" NPT and BSP inlet/outlet threads.
Specifications
- The PetroClear® model 40910W-AD utilizes a 10 micron (nominal) cellulose media to remove particulate from gasoline and diesel fuels including Biodiesel and ULSD (Ultra Low Sulfur Diesel). Removes particulate 10 microns (nominal) or larger, with water sensing capability in neat gasoline and diesel fuel.
- The PetroClear® model 40930W-AD utilizes a 30 micron (nominal) cellulose media to remove particulate from gasoline and diesel fuels including Biodiesel and ULSD (Ultra Low Sulfur Diesel). Removes particulate 30 microns (nominal) or larger, with water sensing capability in neat gasoline and diesel fuel.
- Once PetroClear® models 40910W-AD and 40930W-AD have absorbed 10.7 ounces (315 mil) of water from neat gasoline or diesel fuel, flow will be noticeably slow.
- The maximum flow rate for PetroClear® models 40910W-AD and 40930W-AD is 25 gpm (94.6 lpm). Maximum operating pressure is 50 psid (3.4 bar). Collapse pressure is 150 psid (10.3 bar). Maximum operating temperature is 250°F (139°C).
- PetroClear® models 40910W-AD and 40930W-AD utilize a standard 1.5" – 16 UNF mounting thread ref. (1" flow) required for most spin-on filter adapters used in aftermarket and/or high-flow applications such as in Gilbarco, Wayne, Bennet, Tokheim and other major manufacturers’ dispensers.
- Adapters are available for models 40910W-AD and 40930W-AD in aluminum. These single adapters are available in 3/4" and 1" NPT and BSP inlet/outlet threads.
Specifications Chart
| Model | 40910W-AD | 40930W-AD |
|---|---|---|
| Filter Type | Spin-On | Spin-On |
| Media Type | *Cellulose | *Cellulose |
| Micron Rating | 10 Micron (nominal) | 30 Micron (nominal) |
| Diameter | 3.70" | 3.70" |
| Height | 8.60" | 8.60" |
| Mounting Thread | 1.5" – 16 UNF | 1.5" – 16 UNF |
| Flow Rate | 25 gpm (94.6 lpm) | 25 gpm (94.6 lpm) |
| Flow | 1" flow | 1" flow |
| Shell Thickness | 0.020 | 0.020 |
| Gasket Material | Buna N | Buna N |
| Collapse (Min.) | 150 psid (10.3 bar) | 150 psid (10.3 bar) |
| Burst (Min.) | 500 psi (34.5 bar) | 500 psi (34.5 bar) |
| Max. Operating Temp. | 250°F (139°C) | 250°F (139°C) |
*Water Sensing and Particulate Removing
